Beaglebone Black Expansion (Capacitive)

Beaglebone Black Expansion (Capacitive)

Para convertir el BeagleBone Black en una tablet. Posee display capacitivo de 7" y puertos de expansión.

COD: CS00001

Peso: 1.000 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 124938.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Transform your BeagleBone Black to a Tablet PC

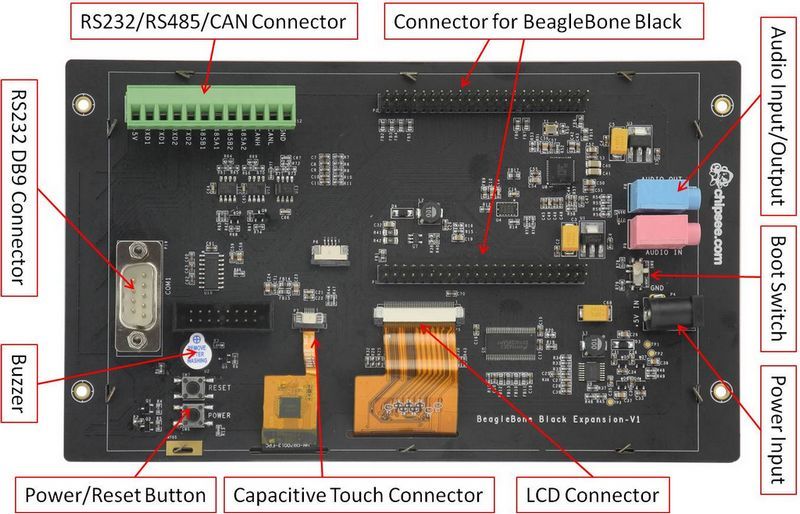

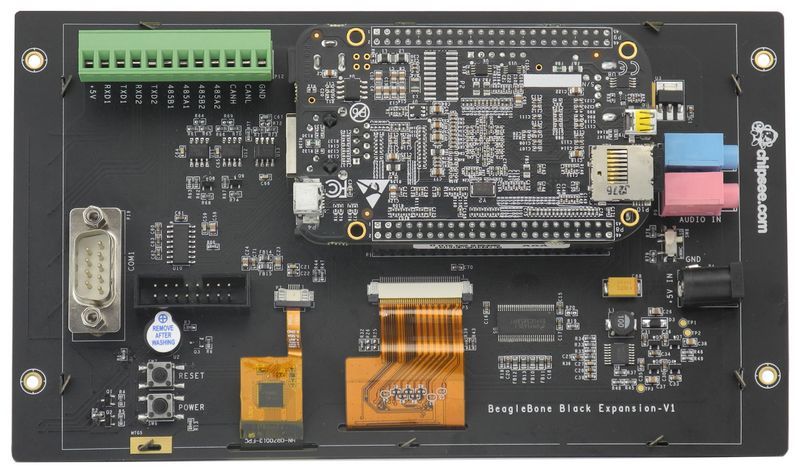

This product designed for working with Beaglebone black,add hardware:

1.Display: 7 Inch LCD,1024*600 Pixel,The display effect even better than iPAD Mini(8 inch 1024*768)

2.Touch: Five Point Capacitive touch,Covered with Amorplate Glass. Touch parameter Optimised for BeagleboneBlack.

3.Audio: 1 Audio out,1 Mic In(Can change to Line in by change resistor)

4.RS232: 2 Channel;

5.RS485:  2 Channel;

6.CAN:     1 Channel;

7.Buzzer  1

8. User Key: 5.

9. User LED:2

10. Three-Axis Digital Accelerometer



SoftWare:

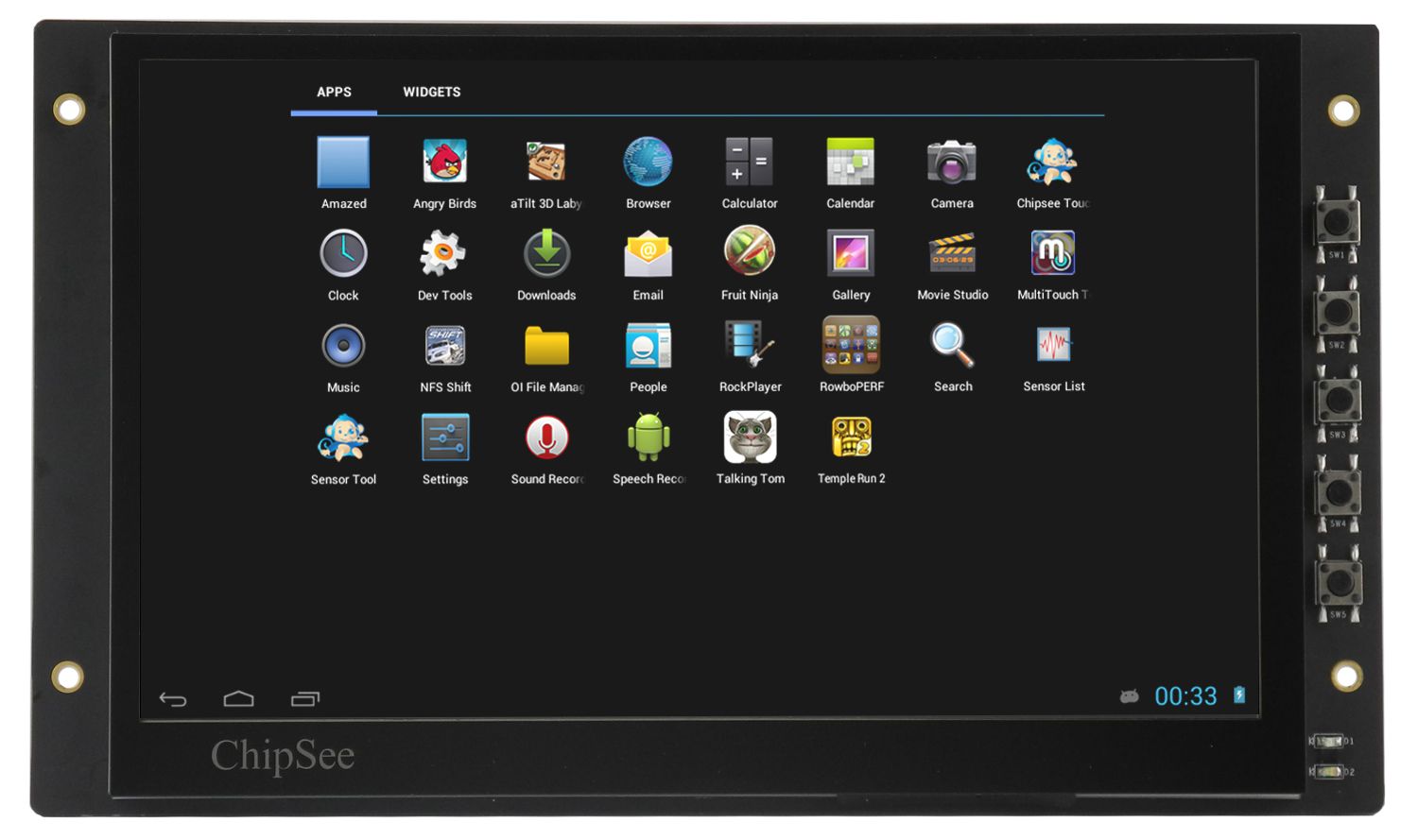

1. Android 4.1,provide Prebuilt file and Kernel source.

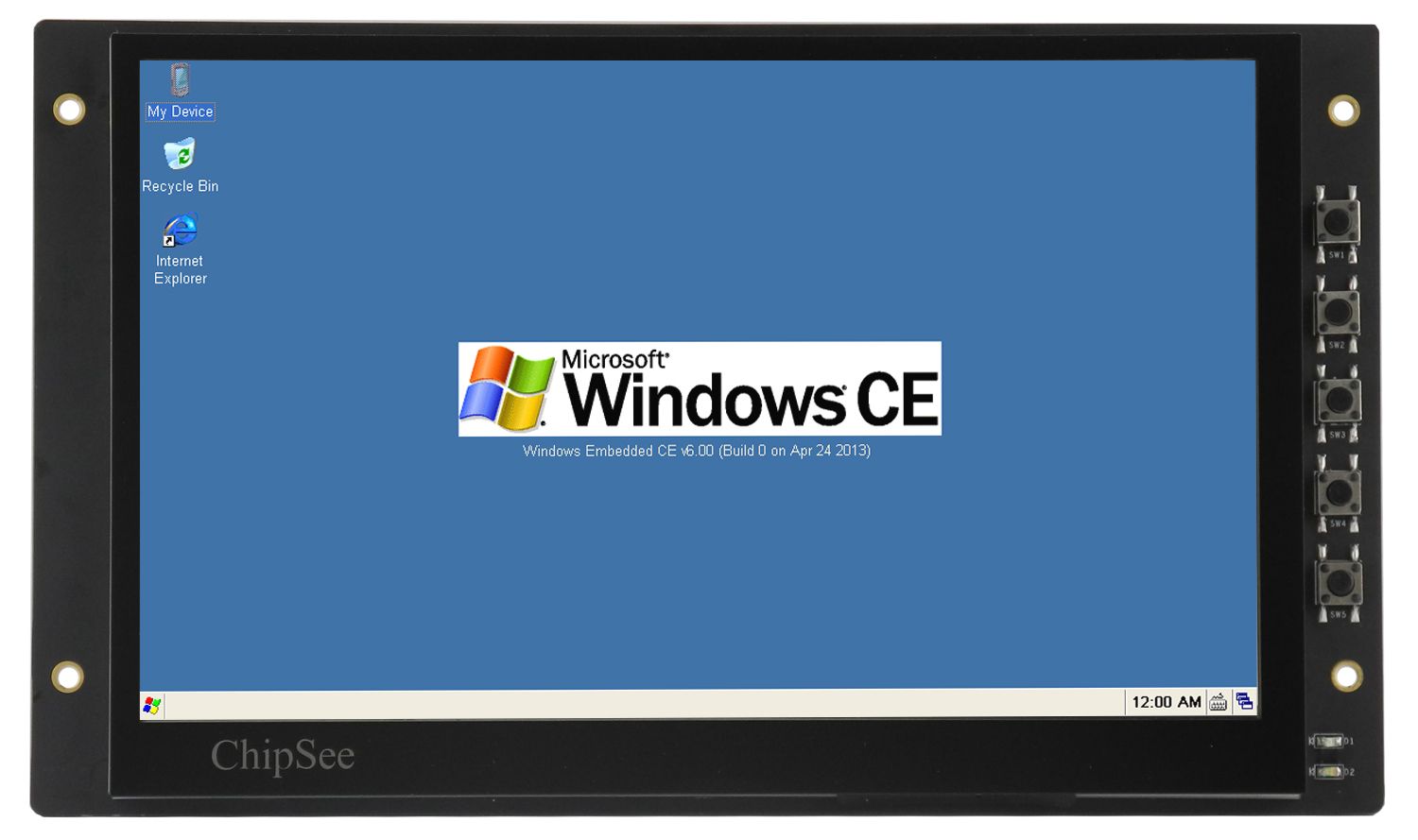

2. Windows CE 6.0,provide BIN.
