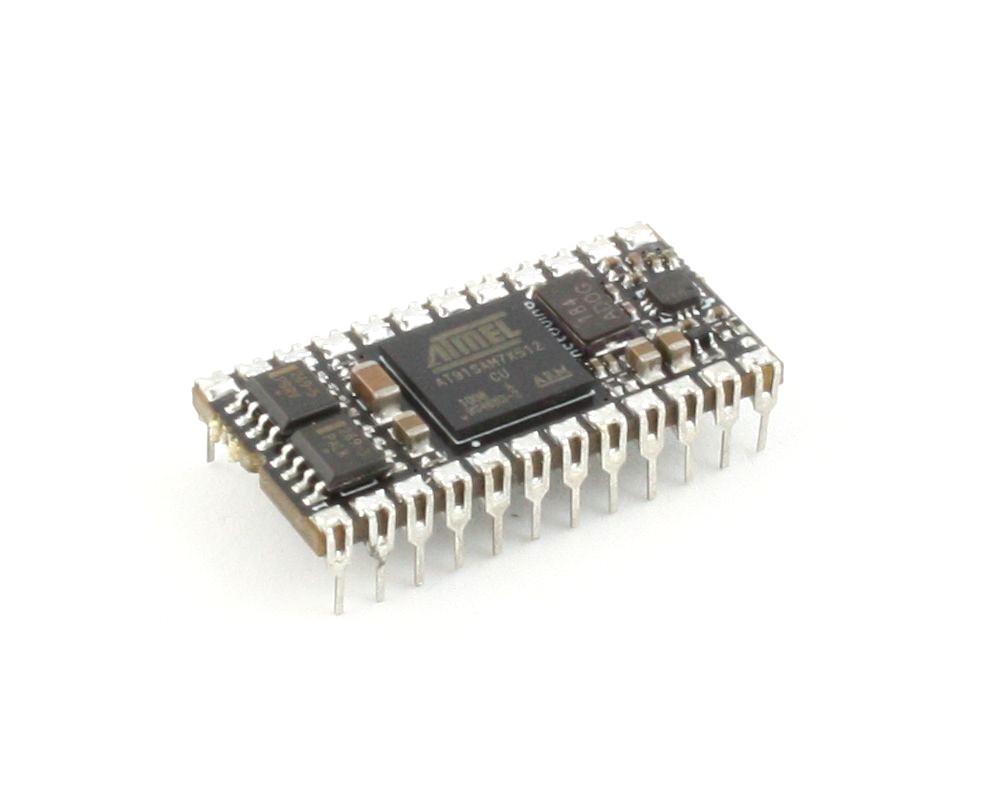

Netduino Mini
The Netduino Mini is an open source electronics platform using the .NET Micro Framework.
COD: NET0003
Peso: 0.006 Kg
Disponibilidad: Sin Stock
ARS 331.00
El producto no está disponible para la venta en este momento
Características
The Netduino Mini is an open source electronics platform using the .NET Micro Framework. It features a 32-bit microcontroller (the same one used in the Netduino) and has a rich development environment. The Netduino Mini has a total of 16 GPIOs with SPI, I2C, UART, 4 PWMs, and 4 ADC channels.
The board measures 1.2" x 0.6" and can fit easily into a breadboard. It is also pin compatible with the BASIC Stamp 2 and can be used with most of the BASIC Stamp 2 boards and kits. This is a very powerful developing platform in a very small package.
Fast Facts:
1.2" x 0.6" - tiny "DIP microcontroller" form factor with edge pins (Pb-free). Designed for breadboard use, production industrial/commercial applications, and robots/UAVs/etc. Same microcontroller as regular Netduino - but smaller and with a bit more RAM available. BASIC Stamp 2 pin-compatible - can be used with most BASIC Stamp 2 boards and kits. Can be programmed via RS232 like BASIC Stamp 2 or via 3.3V USB-TTL cable like Arduino Nano. Can be powered via 9V battery, DC power leads, some USB-TTL cables, etc. Industrial temperature rated (-40 C to 85 C), RoHS compliant, Pb-free.
See the Netduino website for more details:www.netduino.com/netduinomini
Downloads: http://netduino.com/downloads/
Netduino Mini Tech Specs
Processor and Memory
Atmel 32-bit microcontroller. Speed: 48MHz, ARM7. Code Storage: 128KB. RAM: 64KB.
Inputs and Outputs
4 Analog Inputs (+ Digital I/O). 12 Digital I/O. RS232. VIN, 5V, and GND.
Digital I/O Features
Pins 1-3: RS232 TX, RX, DTR. Pins 9-10: I2C SDA, SCL. Pins 11-12: UART 1 TX, RX. Pins 14-16: SPI MOSI, MISO, SPCK. Pins 17-20: PWM, PWM, PWM, PWM.
Power specifications:
Input: 7.5 - 12.0 VDC or 5 VDC powered. Output: 5 VDC regulated.
Processor Details
Atmel AT91SAM7X512-CU Data sheet: AT91SAM7X512-CU(pdf)
Netduino Mini Layout (136 Kb)
Netduino Mini Schematics (24 Kb)
